Size: 12-1/2" wide, 1-3/4" thick, 37" long (31.8 cm wide, 4.5 cm thick, 94.0 cm long)
Weight: 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood: Basswood
Body Finish: High gloss polyester/ Mystic Dream
Bridge: Standard - Custom John Petrucci Music Man� floating tremolo of chrome plated, hardened steel with solid steel saddles / Piezo bridge with solid steel saddles
Scale Length: 25-1/2" (64.8 cm)
Neck Radius: 15" (38.1 cm)

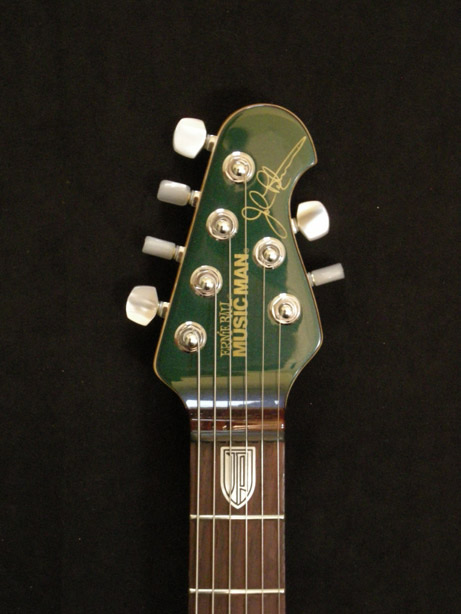

Headstock Size: Only 5-7/8" (14.9 cm) long
Frets: 24 - High profile, wide
Neck Width: 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood: Select Birdseye maple
Fingerboard: Rosewood
Fret Markers: Custom JP Shields
Neck Finish: Gunstock oil and hand-rubbed special wax blend
Neck Color: Natural w/ Matching painted headstock
Tuning Machines: Schaller M6-IND locking with pearl buttons
Truss Rod: Adjustable - no component or string removal
Neck Attachment: 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
ElectronicShielding: Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls: 500kohm volume and tone - .022�F tone capacitor
Switching: 3-way toggle pickup selector, with custom center position configuration 3-way toggle piezo/magnetic selector
